Intan I/O Expander

Intan I/O expander

The Intan Technologies I/O expander (Part #E6500) connects to the Intan recording controller or stim/recording controller to provide additional analog and digital I/O. The I/O expander adds six additional ADCs for analog inputs and DACs for analog outputs (with ±10V range and 16-bit resolution) and 14 additional digital inputs and outputs (3.3V and 5V compatible).

The I/O Expander is powered from the main controller over a supplied interface cable. All signals on the interface cable are digital, eliminating the possibility of noise pickup. The small unit may be mounted in a standard 19" rack (1U) or operated from a bench top.

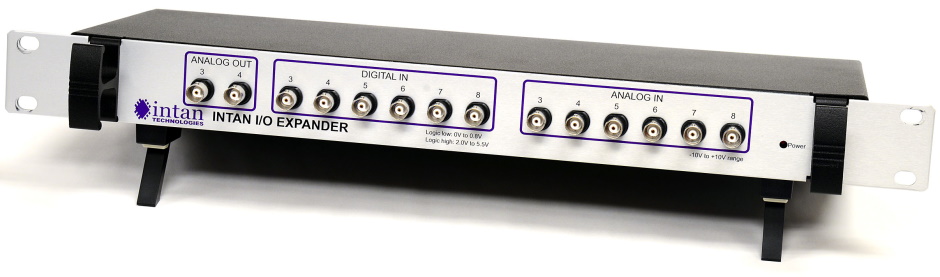

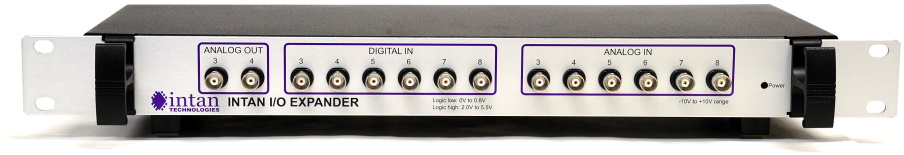

Intan I/O expander front panel

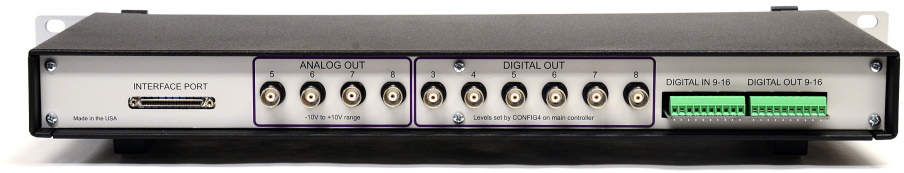

Intan I/O expander back panel
