Example signals acquired with RHD2000 chips


Here are some real electrophysiological signals obtained using RHD2000 series digital electrophysiology interface chips and standard electrodes: electrocardiograms (ECG/EKG), electromyograms (EMG), and neural signals.

ECG from RHD2000 chip

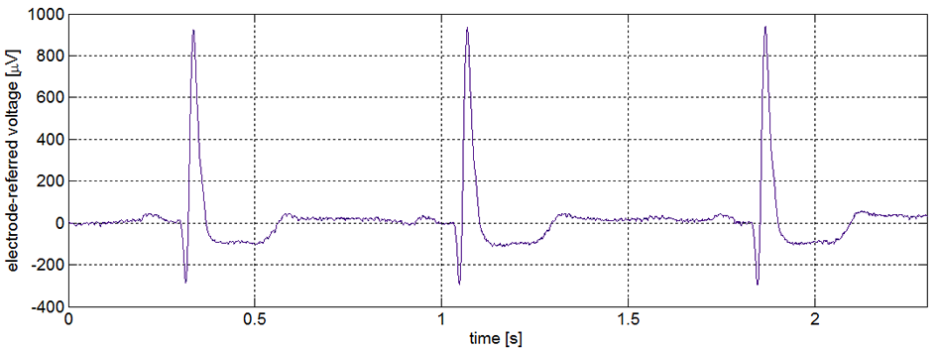

ECG/EKG signal recorded with RHD2216 chip using Ag/AgCl electrodes on the chest. The amplifiers were configured with a lower cutoff frequency of 0.6 Hz and an upper cutoff frequency of 100 Hz. ADC sampling rate was 2 kS/s per channel.


EMG from RHD2000 chip

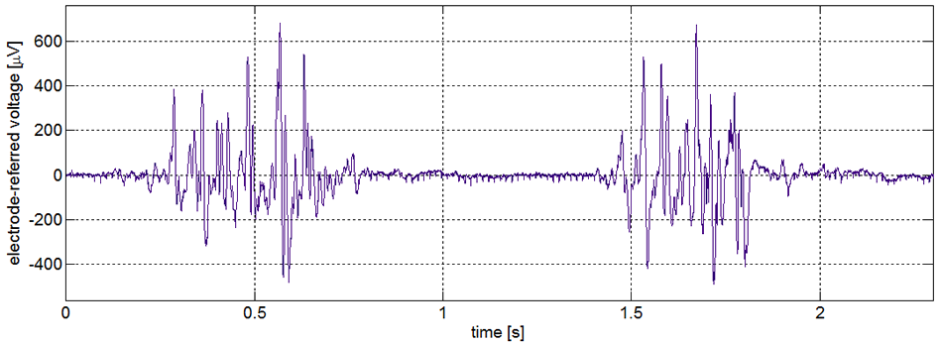

EMG signal recorded with RHD2216 chip using Ag/AgCl electrodes over bicep during two brief muscle contractions. The amplifiers were configured with a lower cutoff frequency of 10 Hz and an upper cutoff frequency of 1 kHz. ADC sampling rate was 4 kS/s per channel.


neural spikes and LFPs from RHD2000 chip

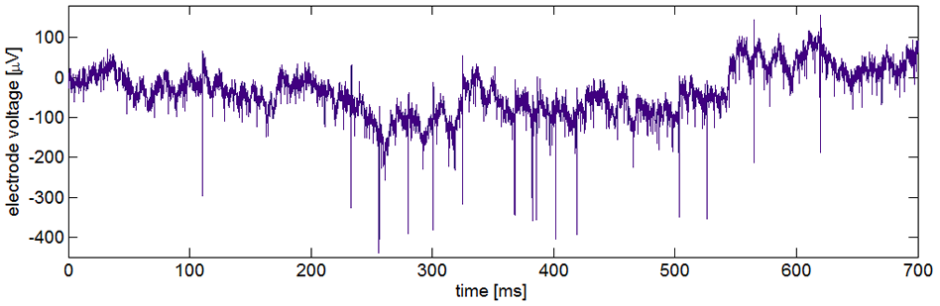

Neural action potentials (spikes) and local field potentials (LFPs) recorded with RHD2132 chip in SI/barrel cortex of a freely behaving mouse using a gold-plated nichrome tetrode. The amplifiers were configured with a lower cutoff frequency of 1 Hz and an upper cutoff frequency of 9.0 kHz. ADC sampling rate was 30 kS/s per channel. (Data courtesy of Jakob Voigts at MIT, Brown University, and open-ephys.org).


neural spikes from RHD2000 chip

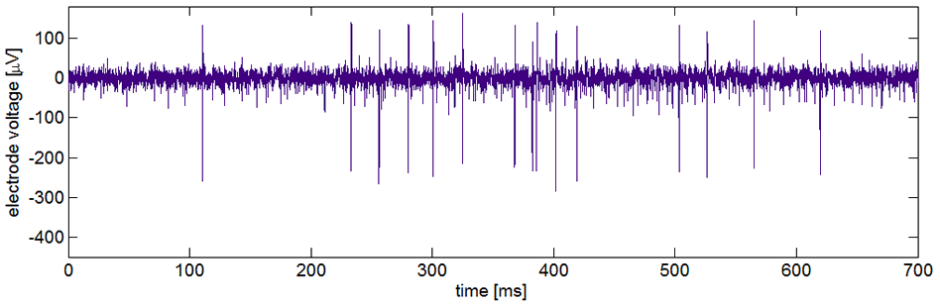

The neural data from above acquired with an RHD2132 chip, high-pass filtered at 300 Hz in software to remove LFPs and isolate spikes. This filtering also could have been performed using the on-chip DSP high-pass filter.


time-aligned neural spikes from RHD2000 chip

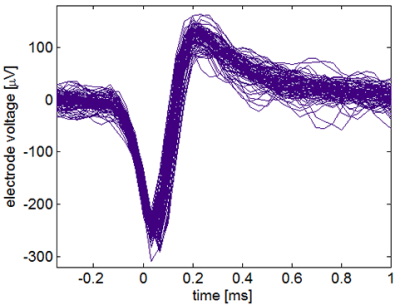

Several time-aligned cortical spikes from the data shown above acquired with an RHD2132 chip. The time axis has been expanded to show the precise shape of each spike over a 1 ms window.
