Example signals acquired with RHS2116 chips


Here are some real electrophysiological signals obtained with the Intan Stimulation/Recording Controller, headstages using RHS2000 series digital stimulator/amplifier chips, and AIROF (activated iridium oxide film) microelectrodes:

ECG from RHD2000 chip

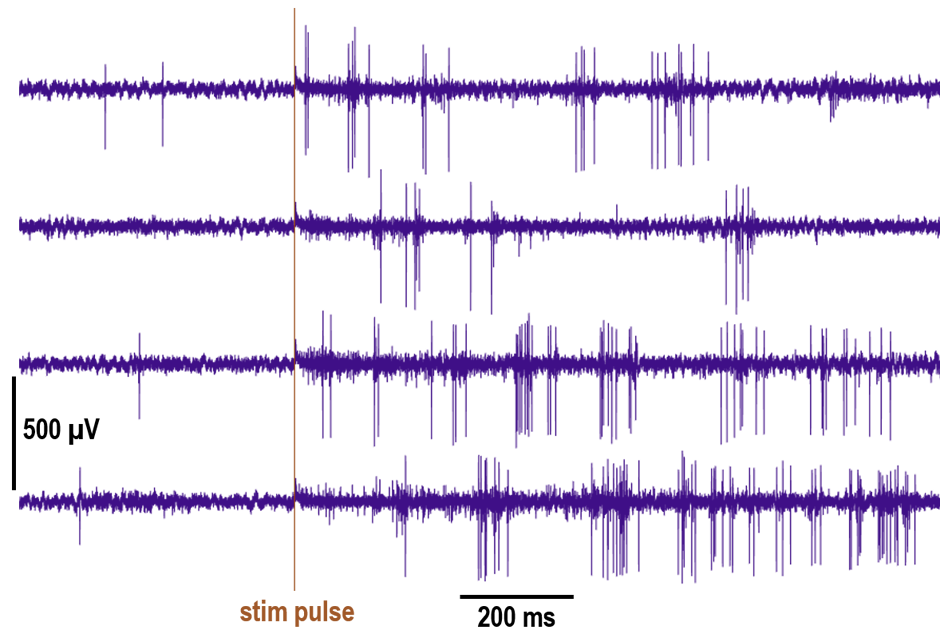

Evoked neural action potentials recorded in mouse thalamus with RHS2116 chip.  Single biphasic pulses of +/-10 microamps and 200 microseconds per phase were delivered on the same channel being recorded.  A software one-pole high-pass filter at 600 Hz was applied to the data to emphasize spikes.


EMG from RHD2000 chip

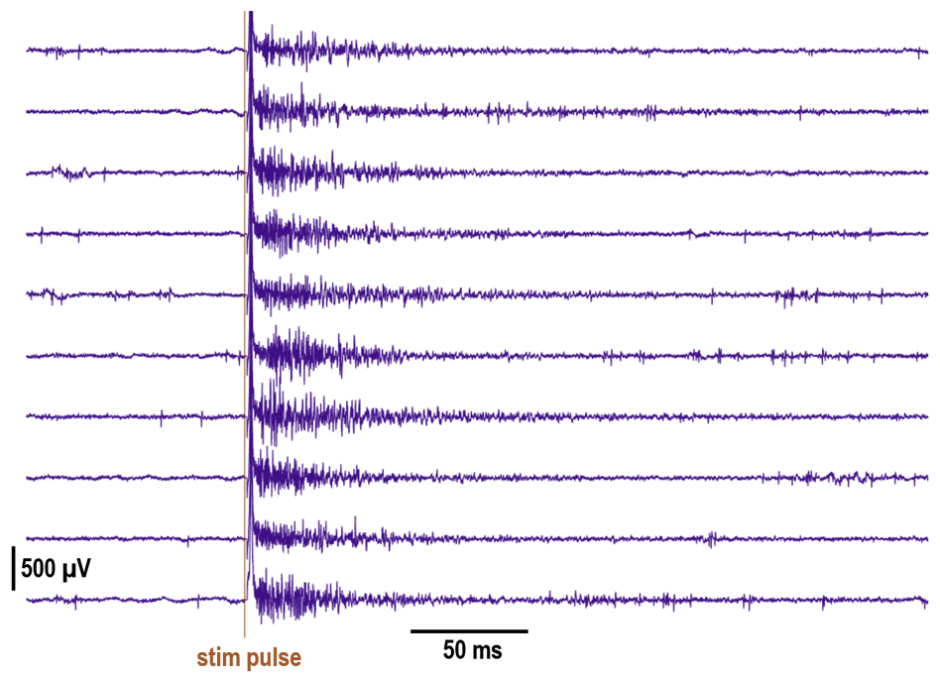

Evoked multi-unit bursts recorded in mouse thalamus with RHS2116 chip. Single biphasic pulses of +/-10 microamps and 100 microseconds per phase were delivered on the same channel being recorded. A software one-pole high-pass filter at 600 Hz was applied to the data to emphasize spikes.
