RHD Controllers
Product Discontinued
The RHD USB interface board was discontinued in February 2022 due to supply chain issues. Please use the RHD recording controller instead.
The RHD recording system offers several options for a USB-linked controller: the 512-channel or 1024-channel RHD recording controller, and the 256-channel RHD USB interface board.
Each controller supports multiple RHD recording headstages, sampling each amplifier channel up to 30 kSamples/s. Each controller also has a number of digital and analog inputs that are sampled in synchrony with the headstages, allowing users to tie in other laboratory equipment to one data acquisition system.
The controllers have analog outputs that can reconstruct selected digitized amplifier signals back to analog waveforms in real time. Two of these analog signals are also routed to the left and right channels of an audio out line jack, which can be connected to an audio amplifier for real time monitoring of any two headstage signals.
Each controller has digital outputs; eight of which can serve as low-latency threshold comparators that operate on the signals routed to the analog outputs.
Technical Specs |
Part #C3100 RHD USB interface board |
Part #C3004 or #C3008 RHD recording controller |
|---|---|---|
| headstage ports | 4, non-isolated | 4 or 8, each with independent ground isolation |
| computer interface | USB 2.0 | USB 3.0 |
| amplifier channels supported | 256 (limited by USB 2.0) |
512 or 1024 |
| construction | bare circuit board Warning: liquids can damage board |
small 1U rack-mountable metal case with fold out feet for benchtop operation |
| data acquisition software | free, Windows/Mac executables supplied; open source C++/Qt |
|
| digital inputs | 16 (3.3V nominal, 5V tolerated) | 2 (2.0V to 5.5V); 16 with I/O expander |
| digital outputs | 16 (3.3V) | 2 (3.3V or 5V, selectable); 16 with I/O expander |
| analog inputs | 8 (16-bit ADCs, 0 to +3.3V range) Warning: negative voltages or voltages >3.3V will damage board |
2 (16-bit ADCs, ±10.24V range); 8 with I/O expander |
| analog outputs | 8 (16-bit DACs, ±3.3V range) | 2 (16-bit DACs, ±10.24V range); 8 with I/O expander |
| audio line out | yes; stereo | |
| power source | 5V AC international adapter (included) Warning: voltages >5V (e.g., laptop power supplies) will destroy board |
AC power (90-260V) |
| footprint | 16 cm x 10 cm | 49 cm x 17 cm |
|
|---|

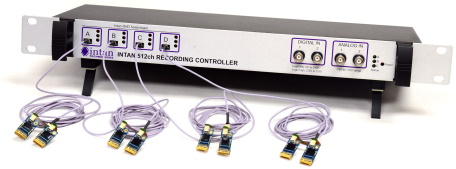

| RHD 512-channel recording controller with headstages |
|---|
|
|---|
| RHD 1024-channel recording controller |
|---|
|
|---|
| RHD USB interface board with headstage |
|---|
